Bar Shutters

Bar Shutters

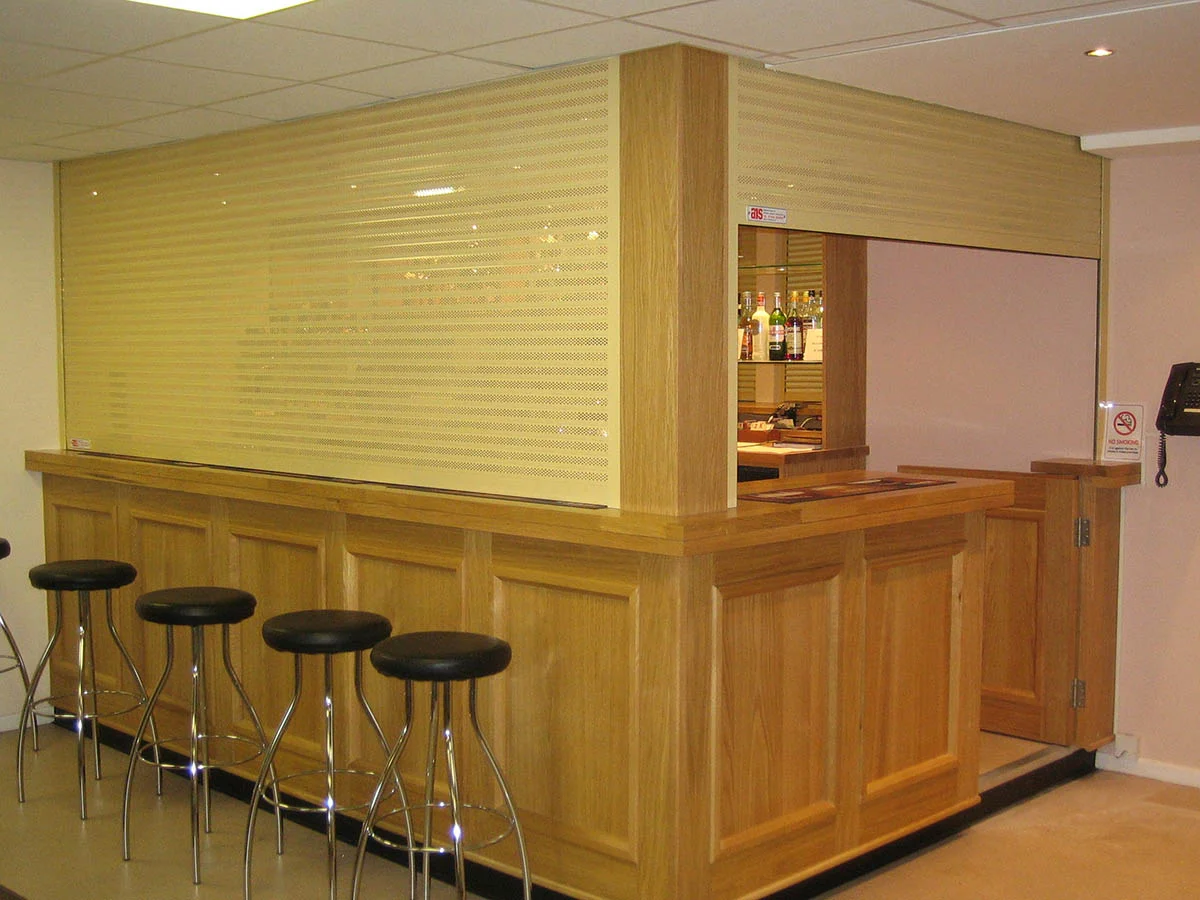

As you would expect from our extensive stock of materials, we can offer an impressive range of bar shutters ideally suitable for projects such as kiosks, serveries and, of course, bars where vision is sometimes a necessity. Our range of bar roller shutters are extremely appealing on the eye and outclass other systems with their strength and smart appearance.

Unlike most of our competitors, we can offer our bar shutters in small lath profiles thus reducing the shutter box sizes dramatically while still retaining high levels of security.

Our lath profiles consist of sleek thick aluminium in solid, perforated or punched sections. The open lath (perforated/punched) allow vision, light and air filtration. On some profiles we can offer our bar shutters with the added higher security feature of a double-skinned extruded profile and H40s reinforced extruded guide channels.

As an optional extra, the perforated or punched holes can be protected with inserted lexan (glazed) strips for ‘anti-tamper’ maximum security.

All our bar shutters are custom made to our customers’ unique requirements and are available in a polyester powder-coated finish to any of our stocked standard BS or RAL colours.

Operation is by one of the following – Single Phase Tubular Motors 240V, Rod Crank or Spring Assisted.

All motors are supplied by Ellard, a world leader in shutter automation.

Curtain Options:

  • 38mm aluminium (solid, punched & perforated)

  • 55mm aluminium (solid only)

  • 77mm aluminium (solid & punched)

Shutter Housing – Constructed from 20swg galvanised steel sheet metal or roll formed aluminium in two sections – base and box lid. Box lid is removable for installation and maintenance purposes.

Barrel – Constructed from 102mm mild steel tube or rigid 60mm/70mm octagonal tube. Incorporating either tubular motor or spring assembly with roller bearing non-drive end.

End Plates – Die-cast aluminium or steel formed to suit shutter weight and box housing.

Side Guides – Constructed from 60mm/70mm/75mm extruded aluminium with an internal box section for strength and ease of installation complete with nylon brush seals for smooth operation.

Operation – Operation is dependent upon shutter size – by either manual spring assist or electric 240v single phase tubular motor.

Electrical Operation – Single phase powered by Ellard tubular motors, 240 volts with 0.5 > 2.5 amps of draw dependant upon shutter size.

Locking Options – With spring assisted shutters, either a centre lock, bullet lock or shoot bolt arrangement is used. For electric shutters, our unique drive down autolock is fitted as standard.

Installation – Installation is carried out by our own fully trained fitting teams.

Safety Regulation – To comply with the Supply of Machinery (Safety) Regulations 1992. All powered shutters are CE Marked.

Electrical Optional Extras – Emergency manual override systems, battery back up units, key switches, key pads, remote controls and photo cells.

Finishes – Shutters can be powder coated to any B.S. or R.A.L. colours you may require to complement modern building designs.
